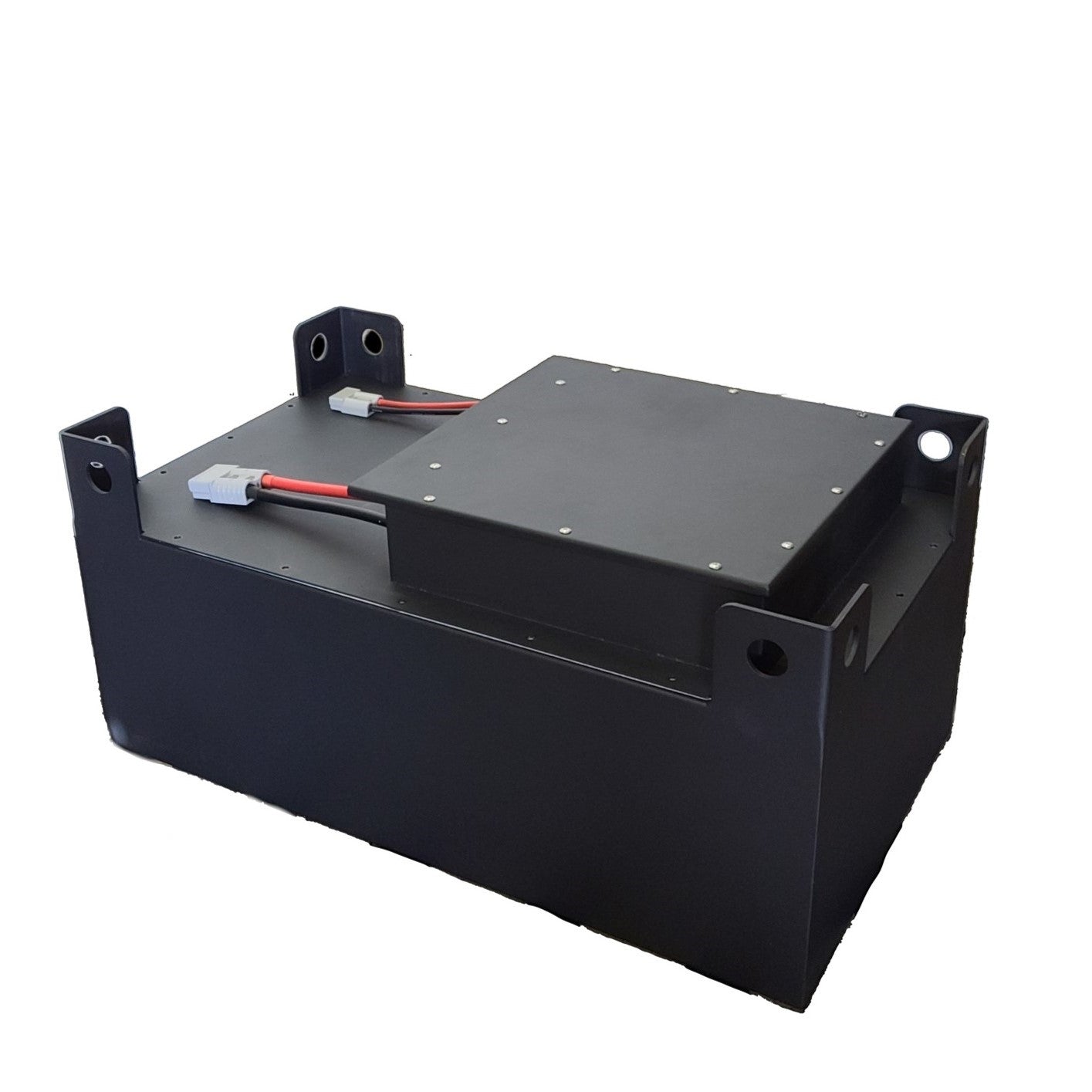

72V 230Ah Battery (IE72230)
72V 230Ah Battery (IE72230)
Our 72V batteries are an ideal choice for CLASS 1 & 2 forklifts, including narrow aisle and high-rack stackers. Their consistent discharge enables your fleet to maneuver efficiently in tight warehouse spaces.
The IE72230 is one of our 72V batteries with a large capacity, providing steady and ample power for your material handling needs.
Taranis battery modules are built with lithium iron phosphate cells, requiring no maintenance. Additionally, our batteries support rapid charging anytime, anywhere, thanks to their opportunity charging capability. With a 5-year warranty and a lifespan of up to 10 years, our batteries deliver lasting performance.
Using Taranis LiFePO4 batteries can significantly boost your warehouse productivity.
Detailed Specs | ||
230 Ah - 17.1kW | ||
Chemistry | LifePo4 | |
Configuration | 24 Series, 1 Parallel |
|
Voltage | 72V | |
Capacity | 230 Ah - 17.1kW | |
Performance | ||
Continuous Discharge | 230A |
|
Peak Discharge | 450A (30s) |
|
Voltage Range | 60.0 - 87.6V |
|
Charge Voltage | 87.6V |
|
Max Charge Current | 200A |
|
Physical | ||
Length |
720mm (28.4") | |
Width | 420mm (16.6") | |
Height | 340mm (13.4") | |
Weight | 133 Kg (293lbs) | |
Safety Features | ||
Battery Management System |
Over Voltage, Under Voltage, Over Current, Temperature protection Battery equipped with Bluetooth monitoring Option for Internal Heating for sub zero operations Option for paralleling multiple batteries |
