24V 230Ah Battery (IE24230)
24V 230Ah Battery (IE24230)
Couldn't load pickup availability

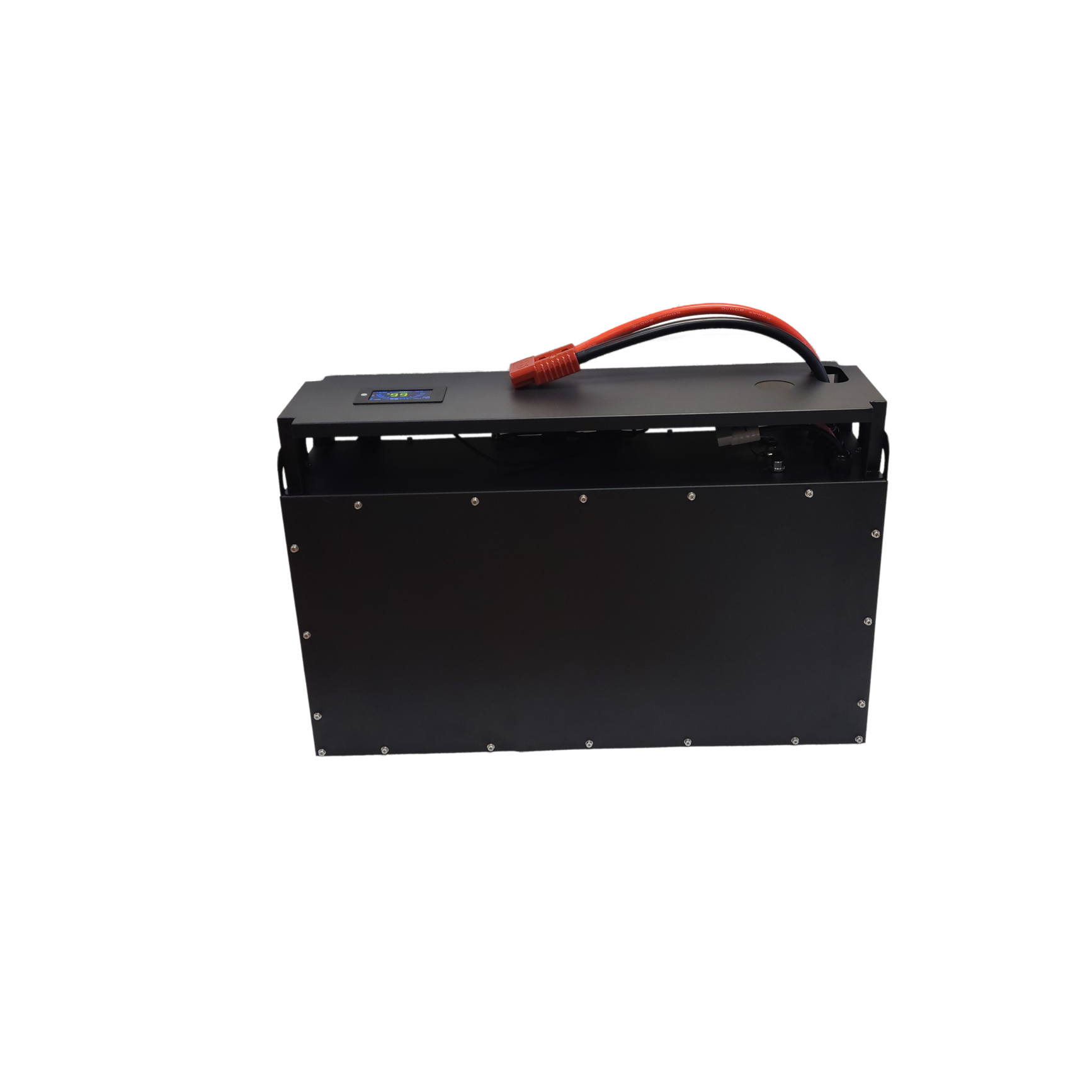

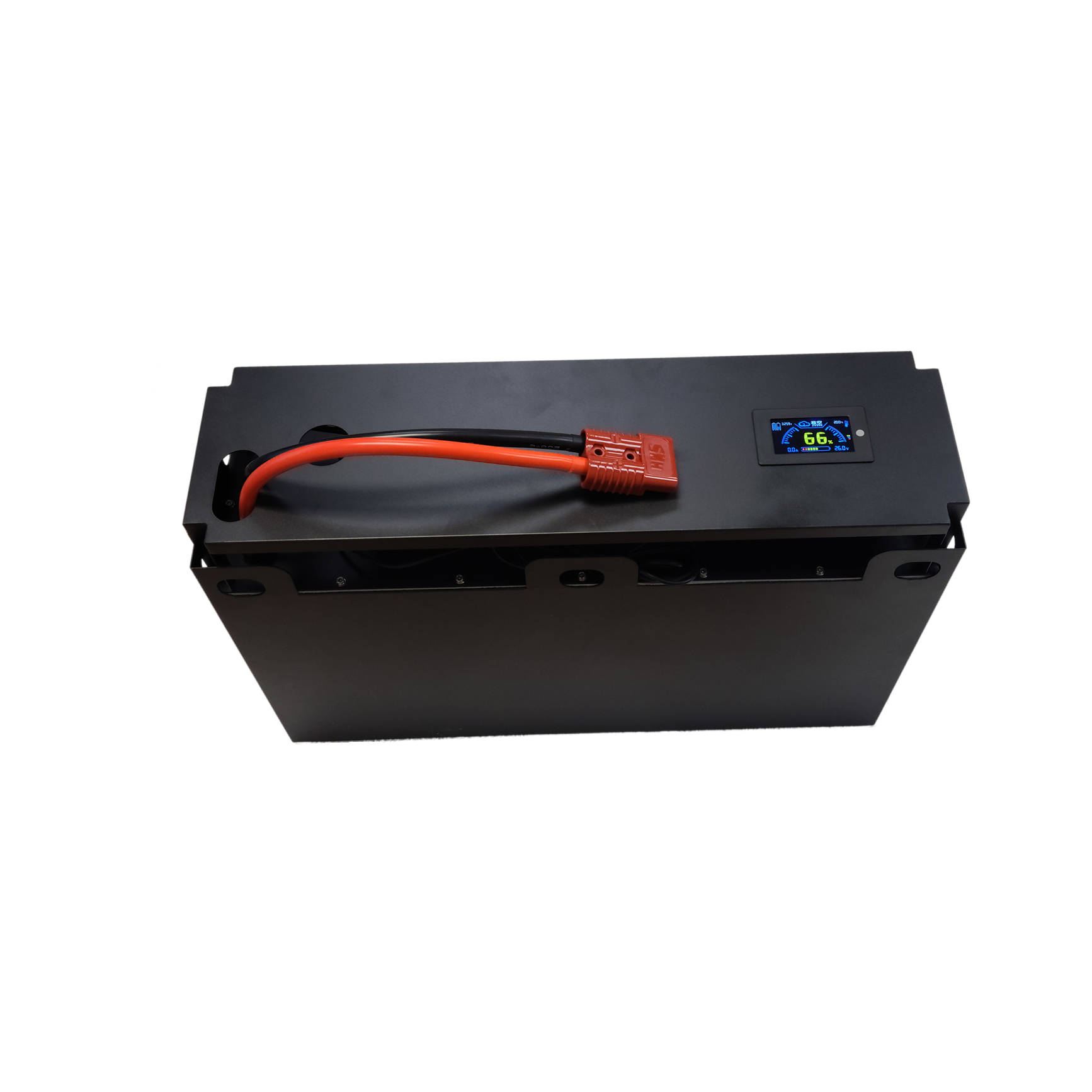

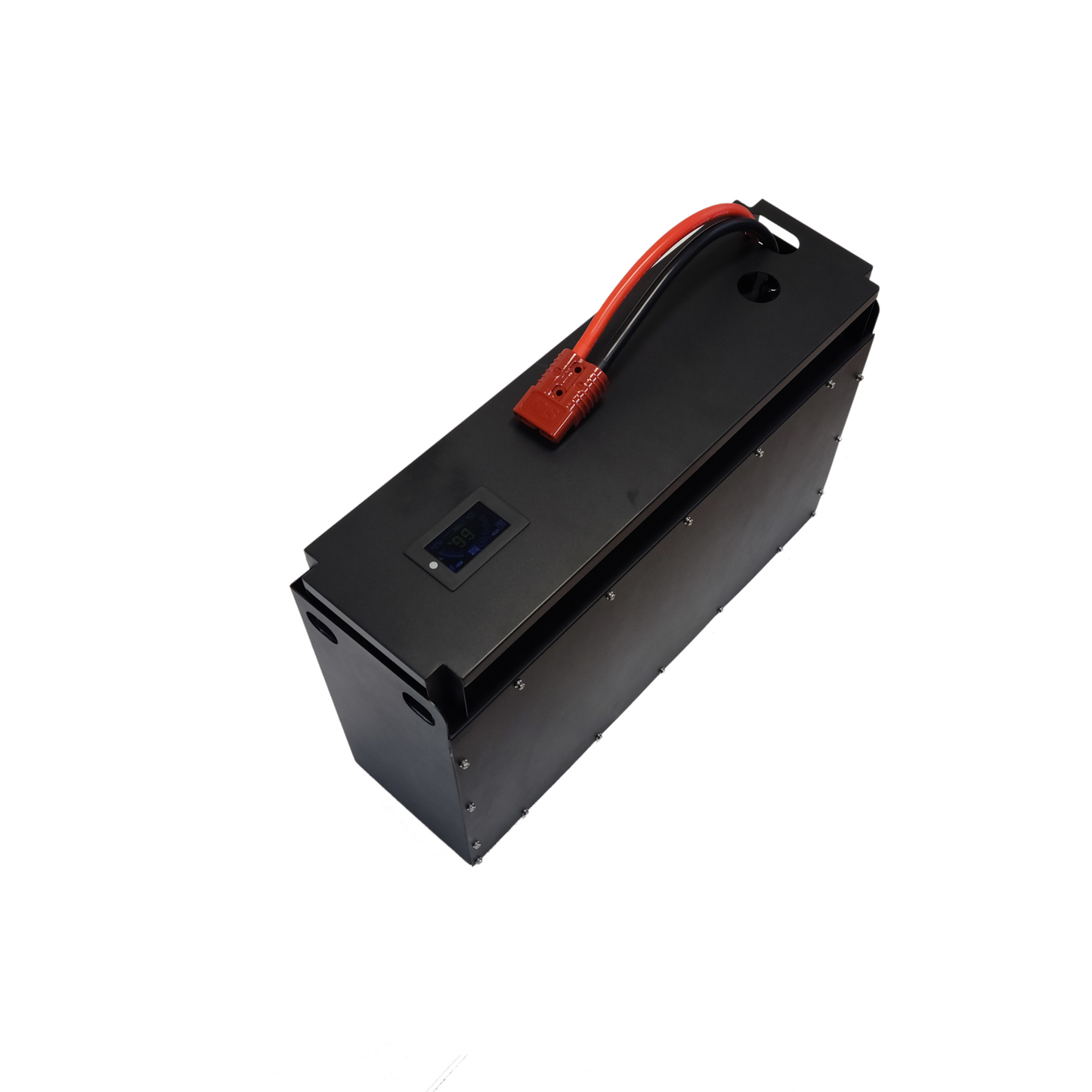

The IE24230 is a 24 V system battery specifically engineered to deliver reliable and safe power for your material handling equipment. It offers enhanced safety features.
With a capacity of 230 Ah, this battery delivers excellent ROI through reduced labor hours, lower maintenance costs, energy savings, and minimized equipment downtime. Its modular design not only cuts down on weight but also simplifies servicing, enhancing the performance of our cutting-edge batteries.
This 24 V 230 Ah battery provides consistent power, requires zero maintenance, and supports faster charging, all of which improve operational efficiency. Additionally, the IE24560's lifespan remains unaffected by charging frequency, with opportunity charging being encouraged to maximize operational uptime.
| Detailed Specs | ||
| 230 Ah - 5.9kW | ||
| Chemistry | LifePo4 | |
| Configuration | 8 Series, 2 Parallel |
|
| Voltage | 24V | |
| Capacity | 230 Ah - 5.9kW | |
| Performance | ||
| Continuous Discharge | 200A |
|
| Peak Discharge | 300A (30 s) |
|
| Voltage Range | 20.0 - 29.2V |
|
| Charge Voltage | 29.2V |
|
| Max Charge Current | 200A |
|
| Physical | ||
|
Length |
690mm (26.4") | |
| Width | 200mm (7.9") | |
| Height | 390mm (15.4") | |
| Weight | 48 Kg (105lbs) | |
| Safety Features | ||
|
Battery Management System |
Over Voltage, Under Voltage, Over Current, Temperature protection Battery equipped with Bluetooth monitoring Option for Internal Heating for sub zero operations Option for paralleling multiple batteries |
|
